Rail moving points

H. K. D. H. Bhadeshia


The French high-speed rail authorities have mandated that moving points must be made from the carbide-free bainitic steel. Here I took some pictures at the Cambridge rail station to use in a book that I am writing, to explain how these points work.



Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail

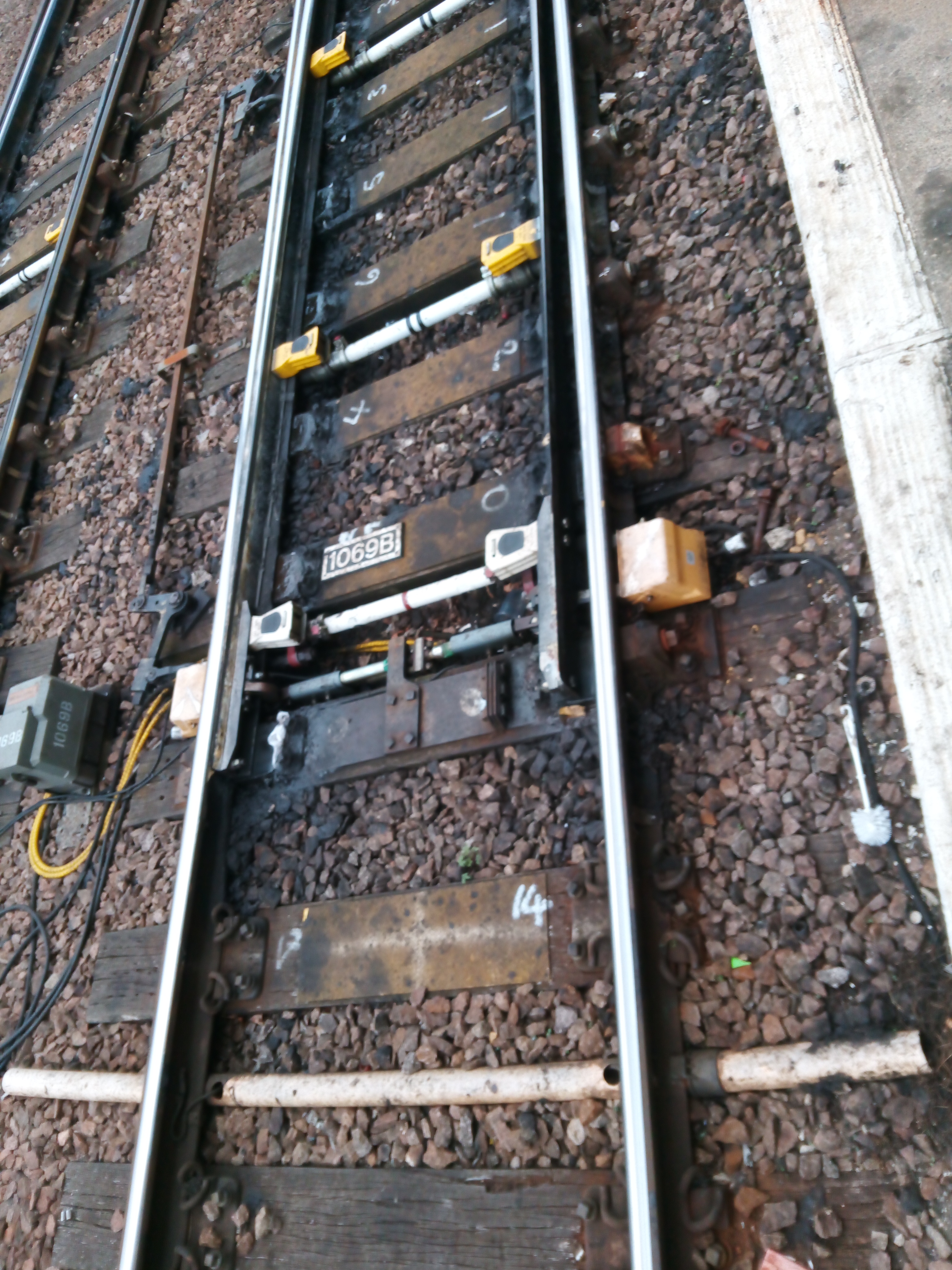

I asked a guard and he explained that the pistons controlling the points are driven by signals from the control room. IN the old days, the points would be moved manually by levers installed in the vicinity.		 Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail
Cambridge railway station, early morning
Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail

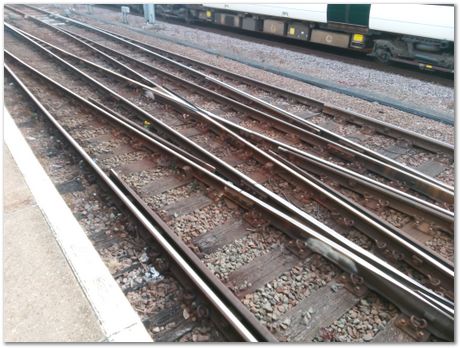

Many different views so that I can figure out the mechanism		 Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail
III
Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail

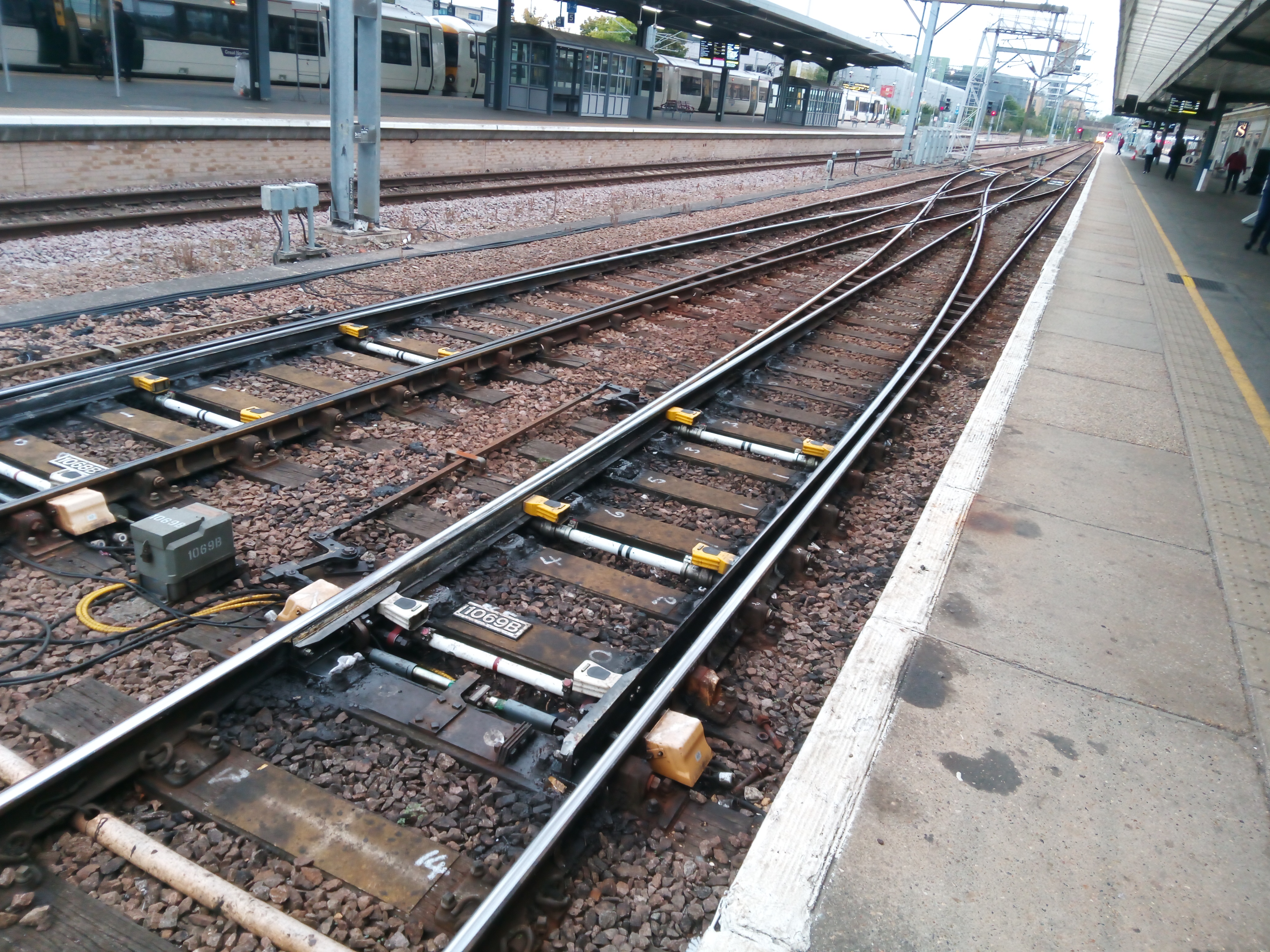

The purpose of course, is to allow trains to change to an adjacent eventually parallel track.		 Harry Bhadeshia, University of Cambridge, Queen Mary University of London, rails, moving points on rails, carbide-free bainite, French TGV, high-speed rail
