A model for the strength of the as-deposited regions of steel weld metals

Metallurgical Transactions A, Vol. 19A, 1988, pp. 1597-1602 A. A. B. Sugden and H. K. D. H. Bhadeshia

This research paper introduces a mathematical model designed to predict the yield strength of low-alloy steel weld deposits by analysing their specific microstructural components. Instead of relying solely on chemical composition, the authors factorise strength into the intrinsic properties of iron, the effects of solid solution strengthening, and the individual contributions of three primary ferrite phases.

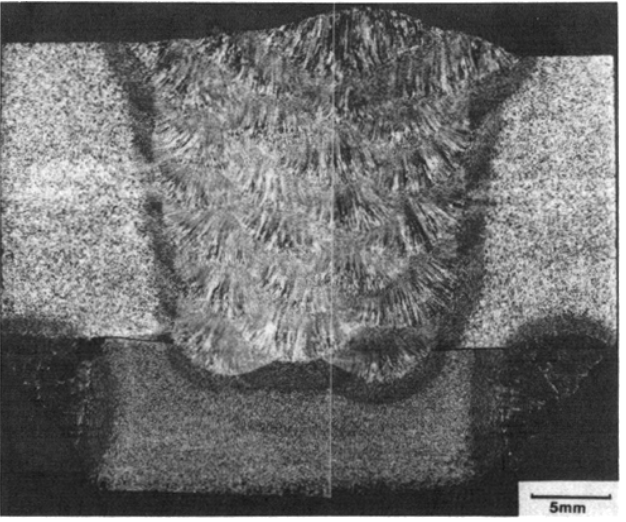

By examining allotriomorphic, Widmanstätten, and acicular ferrite, the study demonstrates that the volume fractions of these distinct morphologies significantly dictate the final mechanical performance of the weld. The model’s accuracy was validated through experimental fabrication of multi-pass welds and a comparison with extensive published datasets.

Ultimately, the findings provide a quantitative framework for understanding how thermal history and alloying elements interact to define the durability and quality of as-deposited weld regions.

Download from journal website.

Audio podcastAudio podcast

theory of transformations in steels

A Study Guide for the Strength of As-Deposited Steel Weld Metal

Reviewing the fundamental research by A. A. B. Sugden and H. K. D. H. Bhadeshia on yield strength prediction in low-alloy steel welds.

Part I: Short-Answer Quiz

Instructions: Answer the following questions in two to three sentences based on the provided research text.

1. What are the three primary components used to factorise the yield strength of a weld deposit in this model? The yield strength is factorised into the intrinsic strength of pure iron, the contribution from solid solution strengthening due to alloying elements, and a microstructural component. The microstructural component is further divided based on the individual contributions of allotriomorphic ferrite, Widmanstätten ferrite, and acicular ferrite. 2. Why is the traditional method of using regression analysis on alloying elements alone considered inadequate? Traditional regression models are highly specific to the datasets they were derived from and are unreliable when extrapolated to different conditions. Furthermore, these equations ignore the effects of thermal history and microstructure, which can significantly alter strength even if the chemical composition remains constant. 3. Describe the role of acicular ferrite in the mechanical properties of a weld. Acicular ferrite consists of non-parallel arrays of bainite laths that nucleate intragranularly. A high proportion of acicular ferrite is associated with an optimum combination of high strength and high toughness within the weld deposit. 4. In the context of phase transformation, how does allotriomorphic ferrite form during the cooling of a weld? As the weld cools below the Ae3 temperature, allotriomorphic ferrite is the first phase to form. It nucleates at the columnar-austenite grain boundaries, rapidly covering them to form a nearly uniform layer. 5. How is the yield stress of the weld metal derived from experimental hardness measurements? Yield stress is calculated using the relationship for a rigid-plastic material indented by a Vickers indenter, where the yield stress (σy) is approximately equal to the Vickers hardness (H) divided by three. This allows researchers to estimate property data from the primary columnar regions where other data are often rare. 6. Why is the austenite grain size ignored when calculating the microstructural contribution to strength? Austenite grain size is ignored because the grains are typically too large to contribute significantly to the overall strength of the weld. The model focuses instead on the smaller effective grain sizes provided by the morphologies of the various ferrite phases. 7. What are "microphases," and what is their typical volume fraction within a weld microstructure? Microphases are very small volume fractions of the microstructure consisting of mixtures of martensite, degenerate pearlite, and retained austenite. These result from the remaining untransformed austenite and typically comprise only 1 to 3 per cent of the weld microstructure. 8. How does the strength of allotriomorphic ferrite compare to that of acicular and Widmanstätten ferrite? The results suggest that allotriomorphic ferrite has a strength only slightly greater than that of pure iron. In contrast, acicular ferrite and Widmanstätten ferrite are significantly stronger due to their smaller effective grain sizes and different transformation mechanisms. 9. What effect does carbon content have on the evolution of the weld metal microstructure? Manipulating carbon content influences the volume fractions of the phases that evolve during cooling. Increasing the carbon content specifically increases the amount of acicular ferrite at the expense of allotriomorphic and Widmanstätten ferrite. 10. How does the reheating that occurs during multi-pass welding affect the weld's microstructure? Reheating changes the microstructure considerably, often resulting in a significant portion of the weld metal being altered. While the first reheating pass has a major effect, subsequent passes have little obvious effect other than a slight increase in grain size.

Part II: Answer Key Summary

Factor Description
Strength Components Iron base, solid solution, and microstructural phases.
Acicular Ferrite Intragranular nucleation; provides strength and toughness.
Allotriomorphic Ferrite Grain boundary nucleation; relatively low strength contribution.
Estimation Yield stress σy ≈ H / 3.

Part III: Essay Questions

Instructions: Use the provided source context to develop comprehensive responses to the following prompts.

Part IV: Glossary of Key Terms

Term Definition
Acicular Ferrite (αa) Non-parallel arrays of bainite laths; nucleates intragranularly.
Allotriomorphic Ferrite (α) The first phase to form upon cooling below Ae3; nucleates at austenite grain boundaries.
Delta-ferrite (δ) The initial phase that grows epitaxially from the parent plate grains during solidification.
Displacive Mechanism A transformation process (e.g., Widmanstätten ferrite) resulting in high dislocation density and wedge-shaped plates.
Paraequilibrium A mechanism involving carbon redistribution but not substitutional alloying elements.
Solid Solution Strengthening Yield strength increase caused by alloying elements (like manganese, silicon, and nitrogen) distorting the lattice.
Widmanstätten Ferrite (αw) Phase nucleating at austenite boundaries; grows as thin plates via a displacive mechanism.
