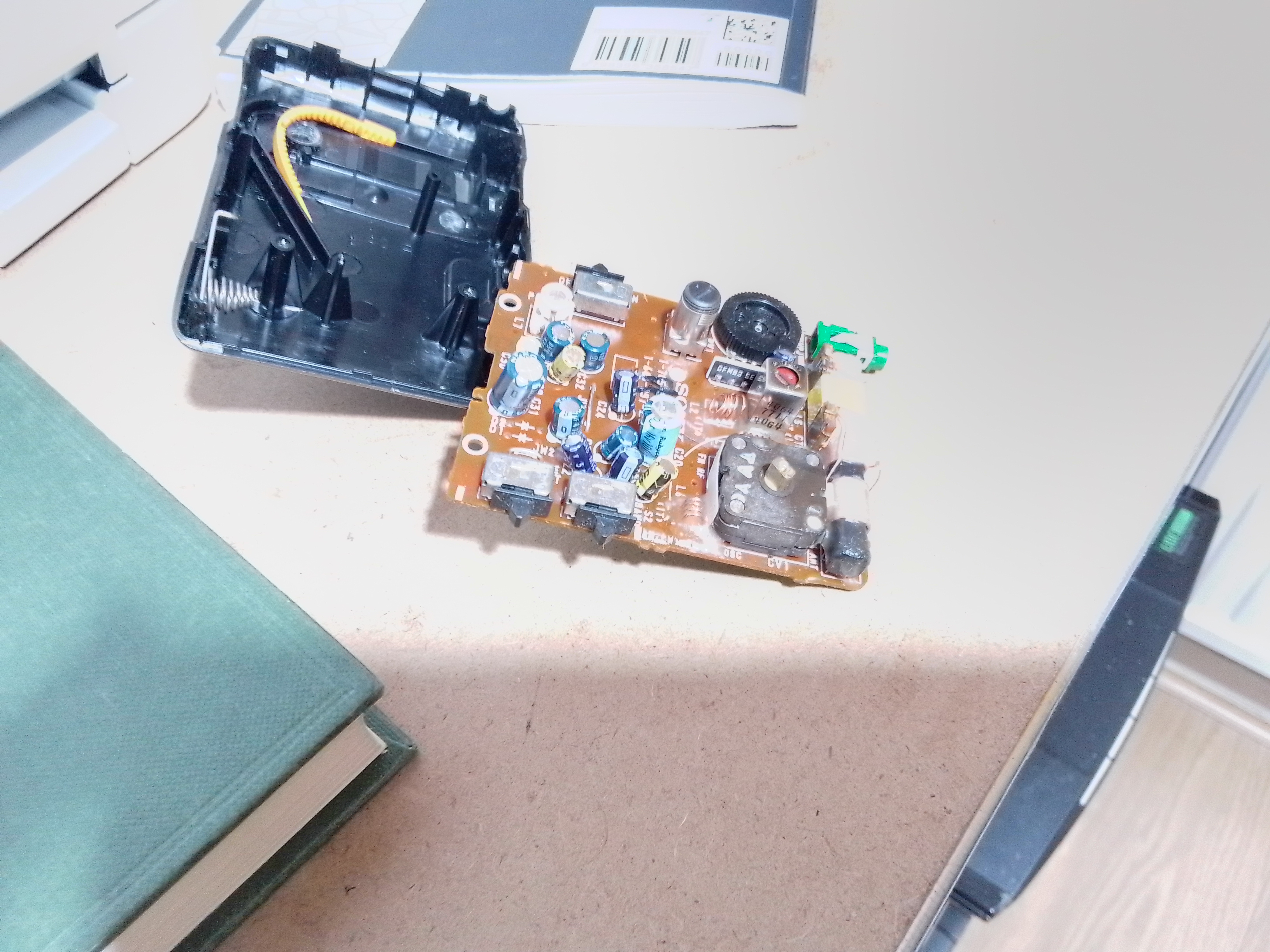

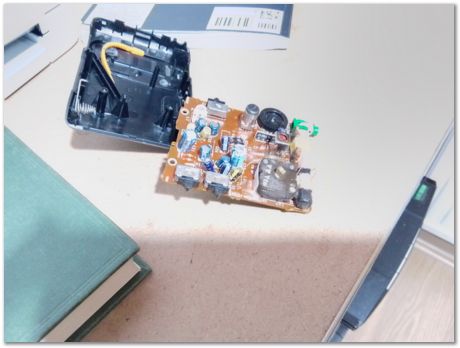

The radio opened up using force

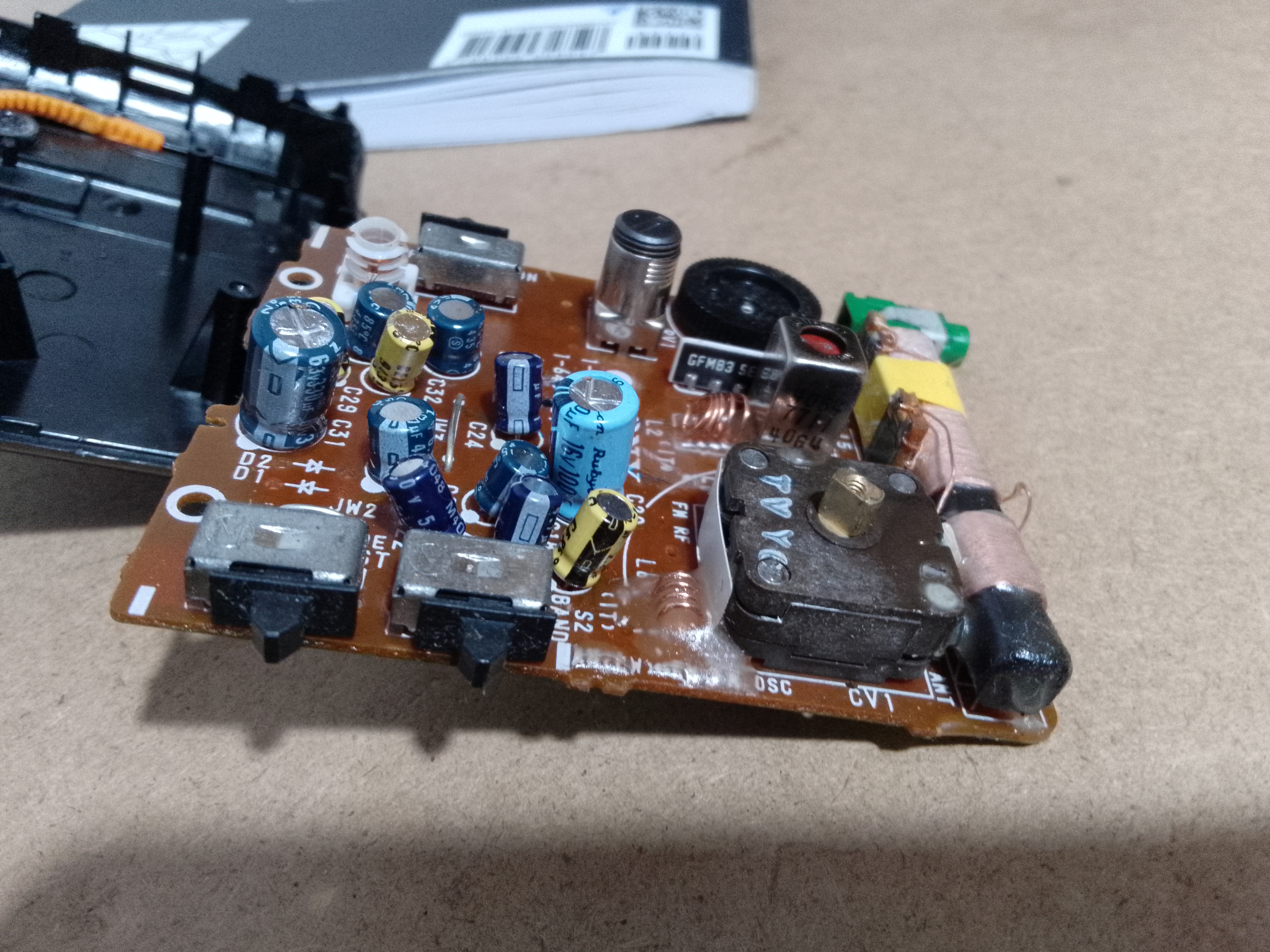

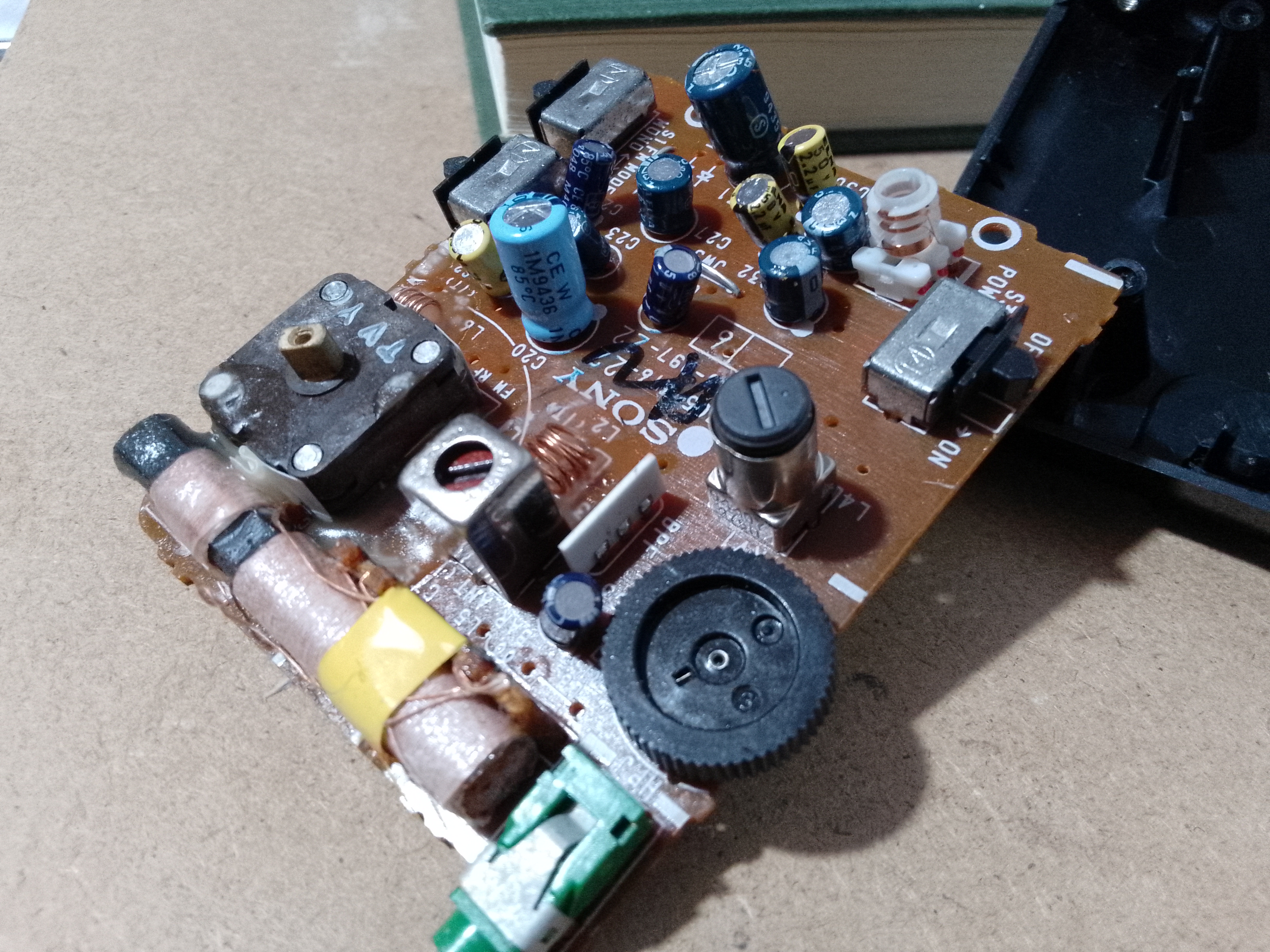

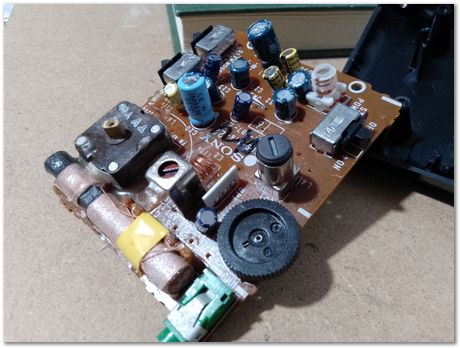

The main circuit board. The other side had the two integrated circuit chips.

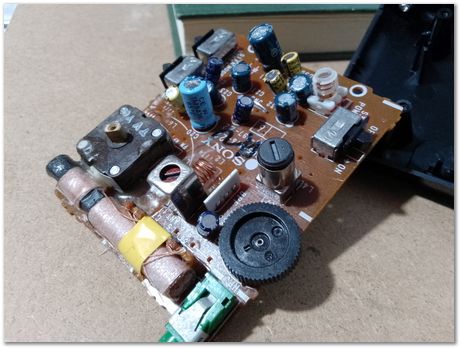

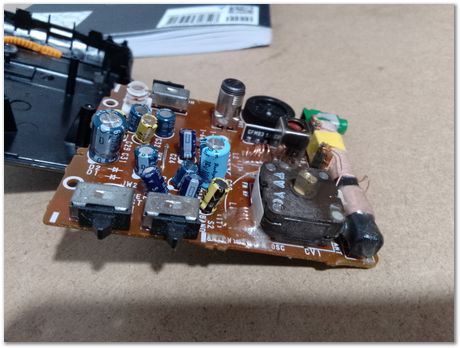

The circular object is for tuning.

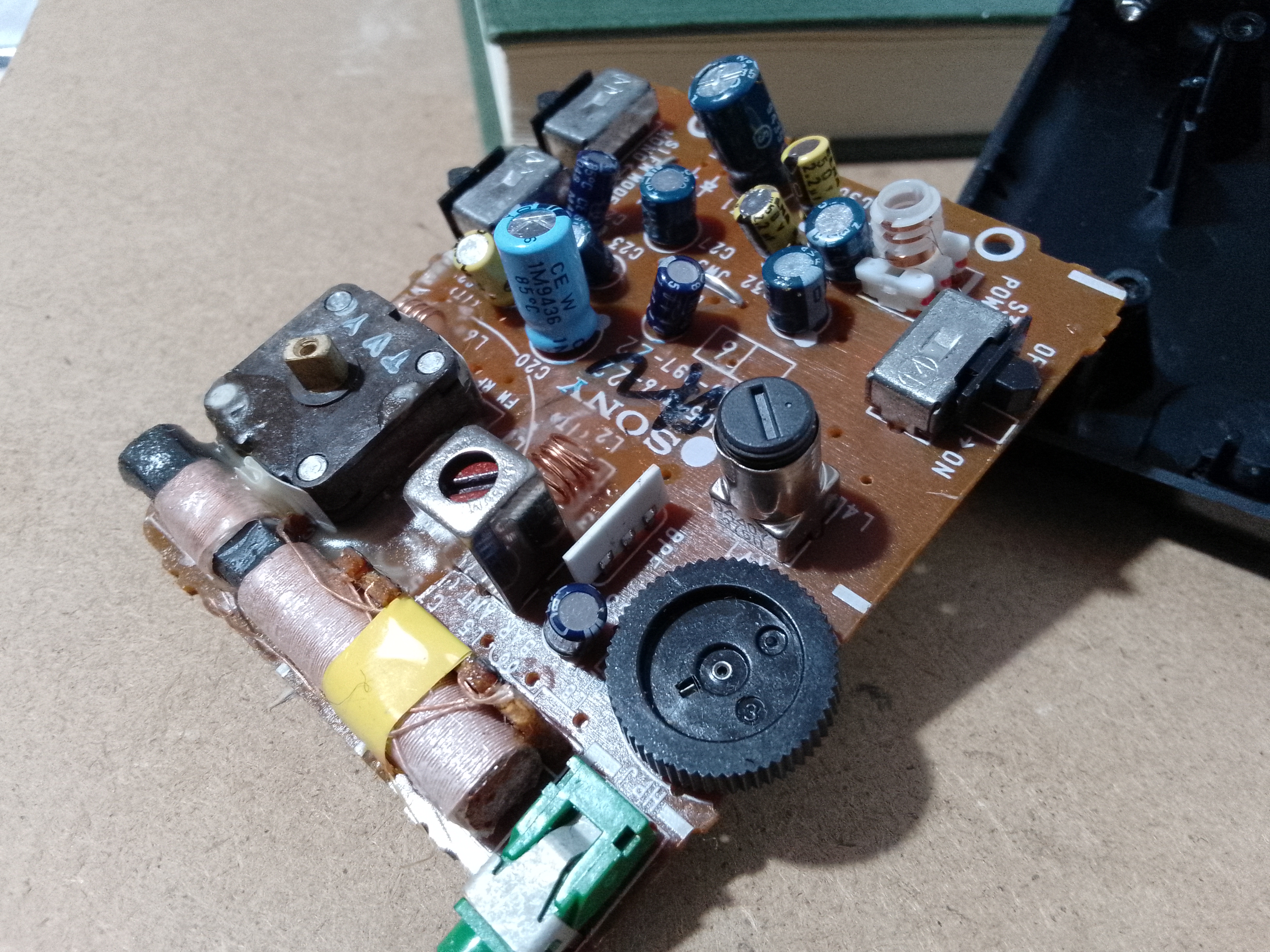

The rod like structure on the left is, I think, an aerial.

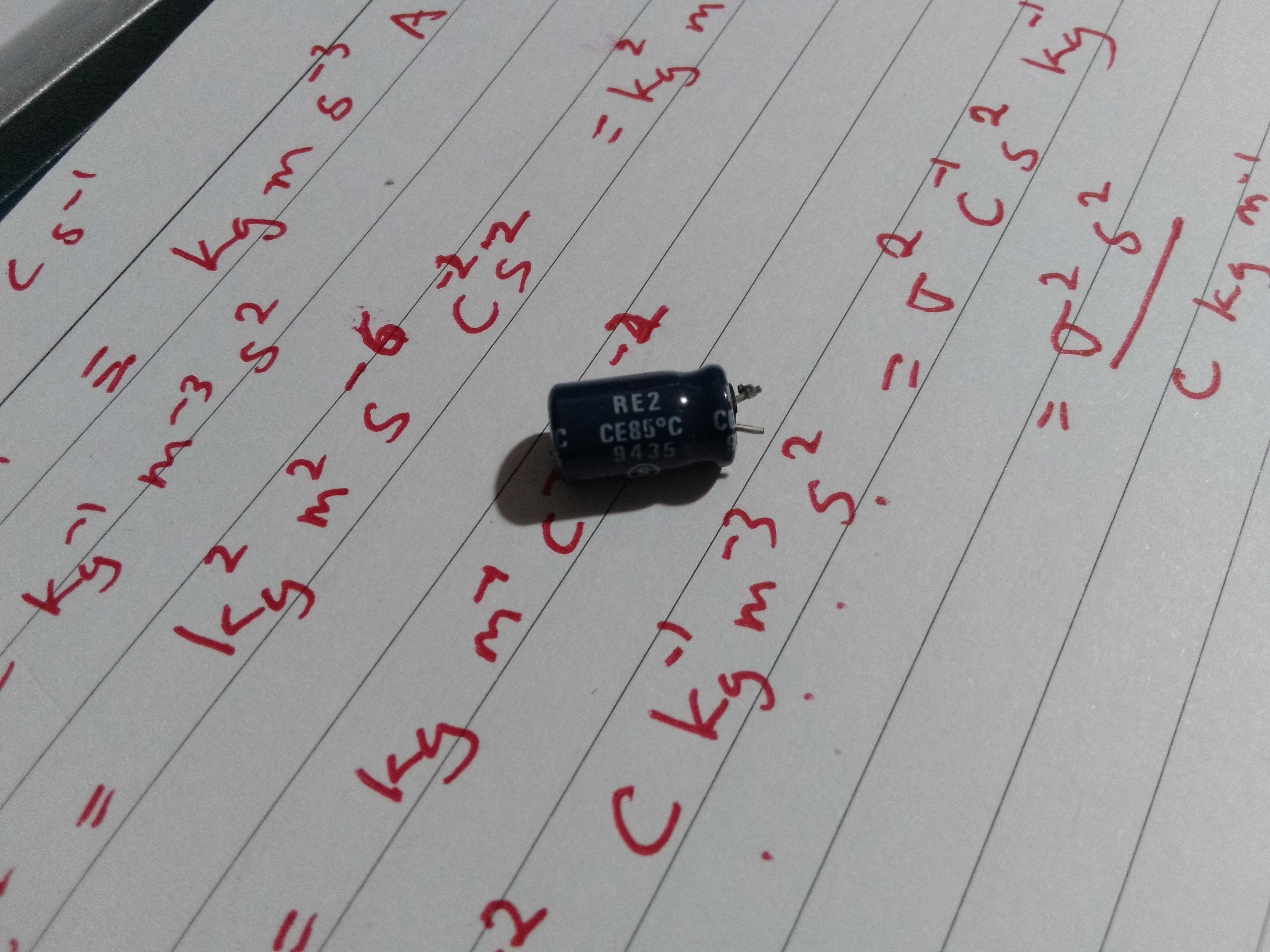

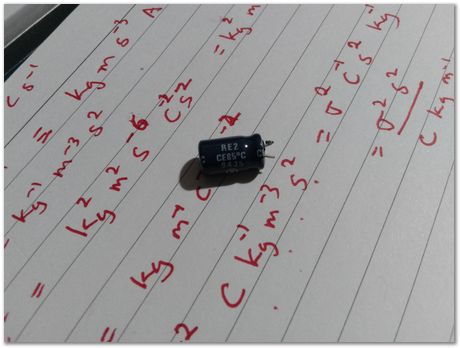

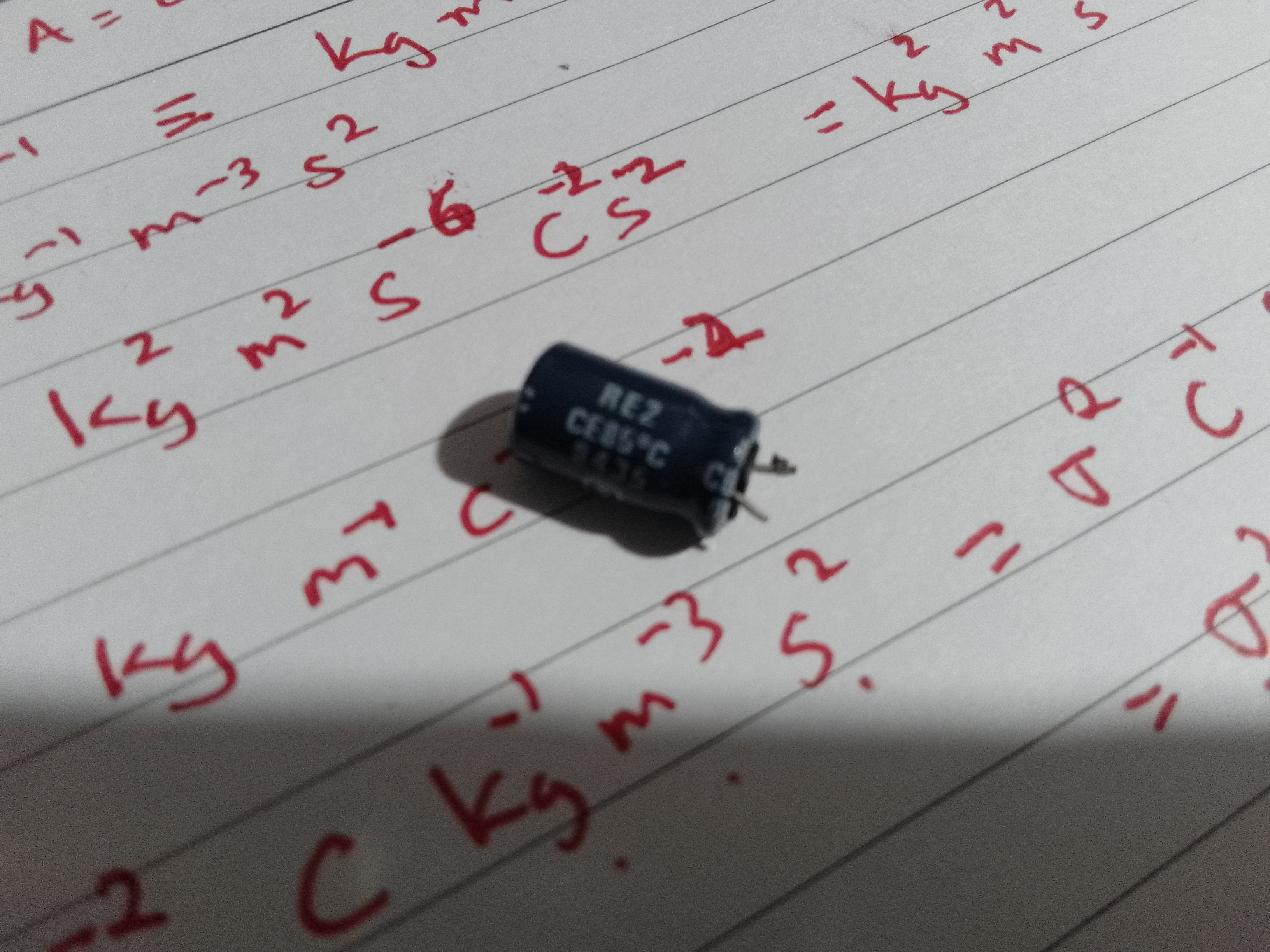

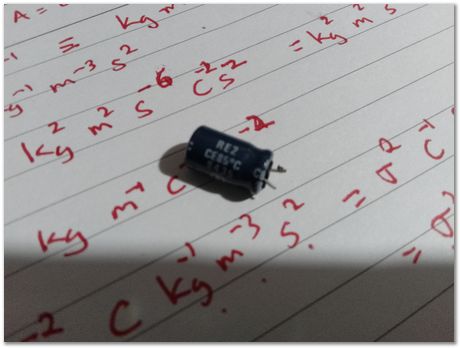

An isolated capacitor.

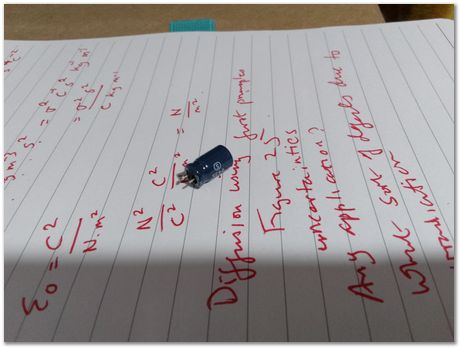

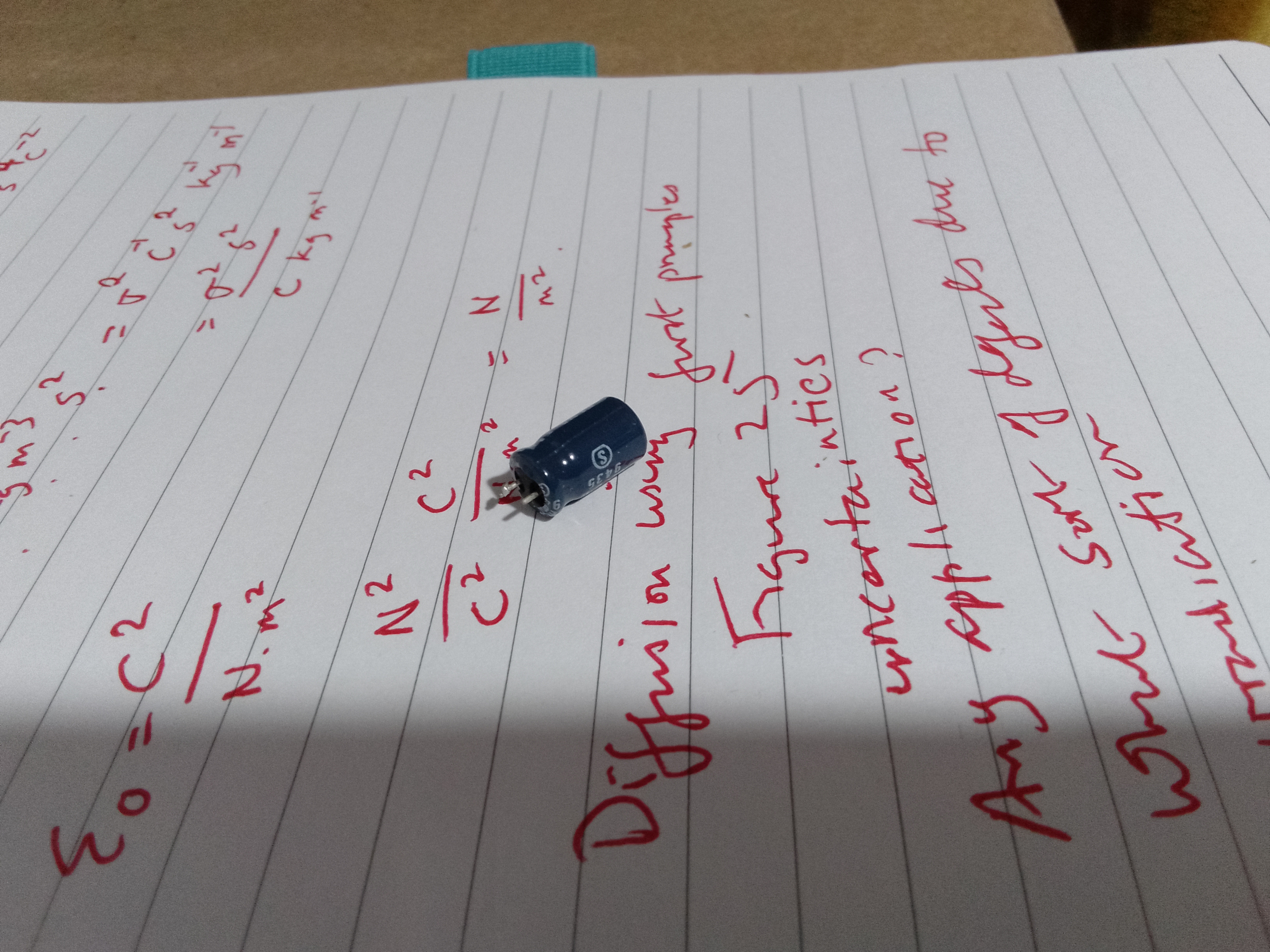

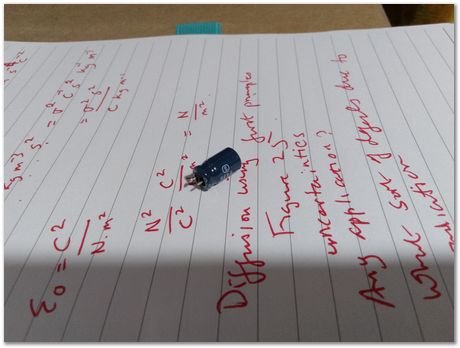

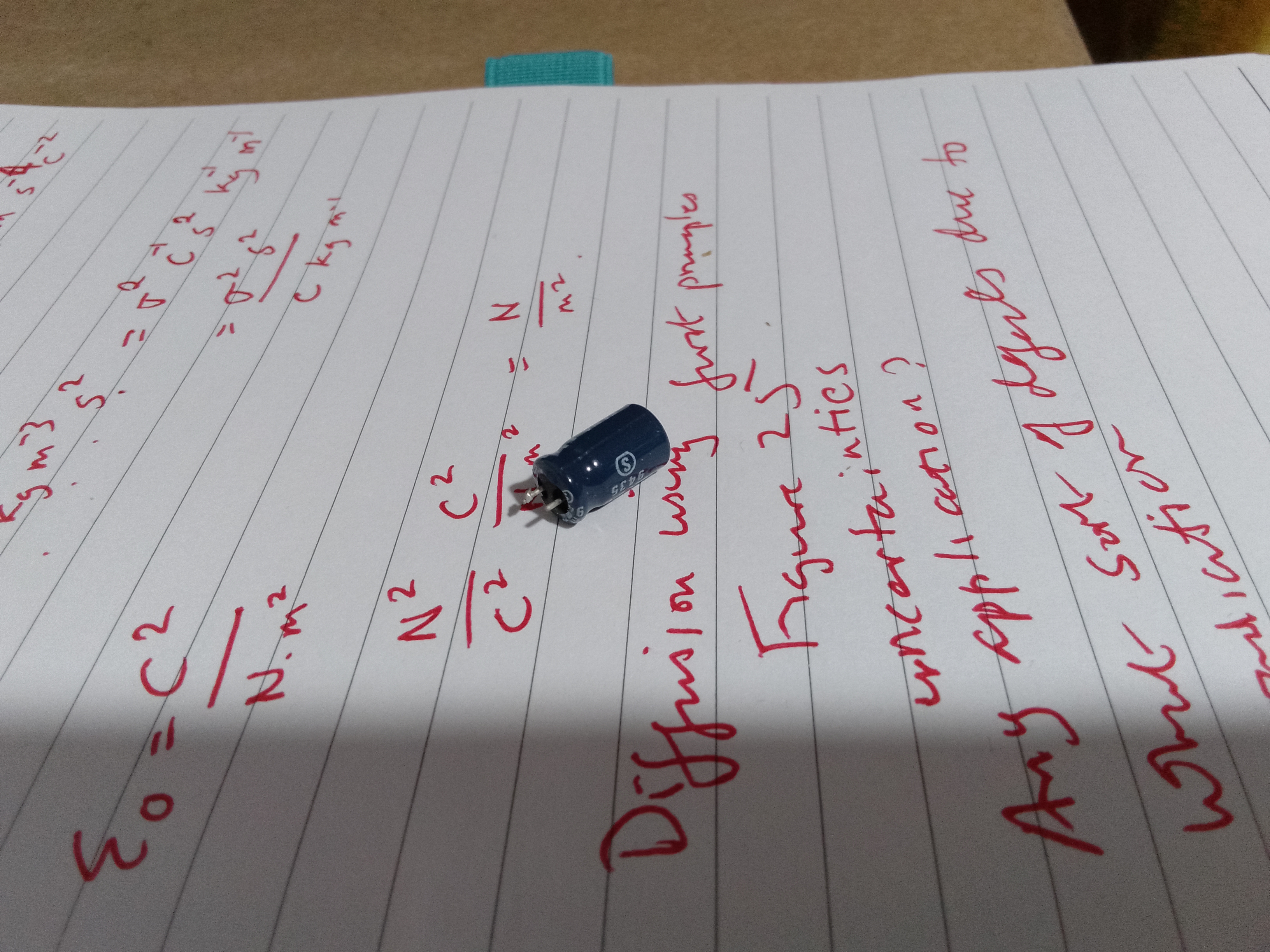

Different point of view
![[Queen Mary University of London]](https://www.phase-trans.msm.cam.ac.uk/QMUL.png)
Photographs of capacitors were needed for a book that Haixue Yan and Harry Bhadeshia are composing on "Functional Materials". Harry had a very old pocket AM/FM (amplitude modulated, frequency modulated) pocket radio, that he opened up (and destroyed in the process) to reveal these objects.
|
The radio opened up using force |
The main circuit board. The other side had the two integrated circuit chips. |
The circular object is for tuning. |
The rod like structure on the left is, I think, an aerial. |
An isolated capacitor. |
Different point of view |
|
|
