Chromium Carbide in steels

Thermodynamic and crystallographic analysis of chromium carbides, specifically the M₂₃C₆ phase, and their critical role in enhancing creep-resistant steels used in power plants. The research explores how the addition of boron and iron influences the stability and coarsening of these carbides, which is essential for maintaining structural integrity under high-temperature stress.

By utilising first-principles calculations and the FLAPW method, the authors estimate formation enthalpies and examine how boron substitution can decrease the energy of the system to stabilise the carbide structure.

Included are detailed crystal structure models, X-ray diffraction data, and experimental evidence of boron's distribution within the steel's matrix. Ultimately, this work aims to bridge the gap between macroscopic measurements and atomistic theory to develop more durable alloys for energy infrastructure.

Audio podcast

The crystallographic data on which the information below is based are from A. L. Bowman, G. P. Arnold, E. K. Storms and N. G. Nereson, Acta Crystallographica B28 (1972) 3102-3103.

First Principles Estimations of the Properties of M₂₃C₆

Cell projected along [100]. Carbon coloured black.	Cell projected along [110].

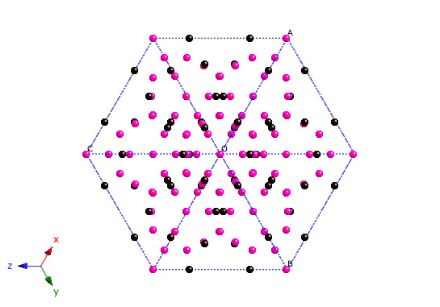

Cell projected along [111].	AVI movie / AVI movie 2 MP4 movie / MP4 movie 2 MOV movie / MOV movie 2 Details of structure Crystalmaker file Theory Thesis

Zone Axis Projections

[001] zone axis
[110] zone axis
[111] zone axis
[112] zone axis

X-ray Diffraction

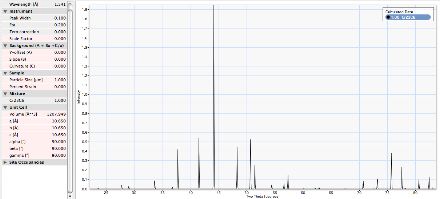

Unlabelled X-ray diffraction pattern

Annotated X-ray diffraction pattern

Study guide

This guide is an overview of the structural, thermodynamic, and mechanical properties of chromium carbide.

M_{23} C_{6}

and the effects of boron and iron substitution within creep-resistant steels. This research may be useful for the development of alloys used in high-temperature power plant applications.

Part I & II: Quiz and Answer Key

1. What is the crystal structure and space group of

{Cr}_{23} C_{6}

${Cr}_{23} C_{6}$ possesses a Cubic-F crystal structure belonging to the $Fm \bar{3} m$ space group. The unit cell contains 92 chromium atoms distributed across four symmetry sites (4a, 8c, 32f, 48h) and 24 carbon atoms located at the 24e site.

2. Define the three stages of the creep deformation process.

Creep consists of primary (transient) creep, where the creep rate decreases due to strain hardening; secondary (steady-state) creep, where the rate remains constant due to a balance between hardening and recovery; and tertiary creep, where the rate increases until failure or rupture occurs.

3. Why is the steady-state (secondary) creep rate a critical engineering design parameter for power plants?

Power plant components are designed for long service lives, often around 30 years, where failure is dangerous and difficult to control. A decreased steady-state creep rate slows the overall deformation of the material, thereby increasing the total time to rupture.

4. How does the addition of boron influence the creep behaviour of 9–12 wt% chromium steels?

Small additions of boron remarkably increase creep rupture strength and decrease the creep rate by stabilising $M_{23} C_{6}$ carbides and retarding their coarsening rate. Boron dissolves evenly within the $M_{23} C_{6}$ phase.

5. What is the observed effect of iron (Fe) substitution on the lattice parameter of

{Cr}_{23} C_{6}

Substituting chromium with iron generally decreases the lattice parameter and the unit cell volume of the carbide. For instance, calculations show the unit cell volume decreases from $295 Å^{3}$ in ${Cr}_{23} C_{6}$ to $288 Å^{3}$ in ${Fe}_{23} C_{6}$ .

6. What is the role of boron substitution in thermodynamic stability?

Boron substitution into carbon sites decreases the formation enthalpy of the carbide, making the structure more thermodynamically stable. The formation enthalpy drops from $- 8.61 {kJ mol}^{- 1}$ for ${Cr}_{23} C_{6}$ to $- 13.53 {kJ mol}^{- 1}$ for ${Cr}_{23} B_{6}$ .

Part III: Essay Format Questions
