Tim Ramjaun changes Clutch

Tim changes the clutch on his supercar. A clutch connects two rotating shafts, one being driven by the engine, and the other connected to a device. The connection helps drive both shafts at the same speed, and enables decoupling when required, for example when changing gears (and hence the rotation speed of one shaft).

Tim Ramjaun, Resurfaced flywheel. Teeth engage with stater motor
Resurfaced flywheel. Teeth engage with stater motor

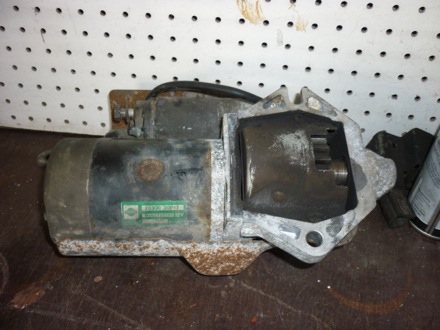

Tim Ramjaun, Starter motor…teeth to turn flywheel
Starter motor…teeth to turn flywheel
Tim Ramjaun, New clutch
New clutch

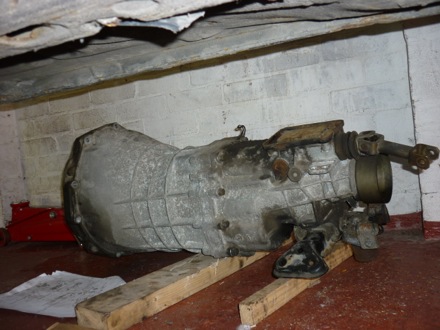

Tim Ramjaun, Gearbox, 60Kg of unevenly distributed weight!
Gearbox, 60Kg of unevenly distributed weight!
Tim Ramjaun, Oil seal (brown) around main shaft. black block above is engine
Oil seal (brown) around main shaft. black block above is engine
Tim Ramjaun, Manual transmission
Manual transmission
Tim Ramjaun, Don't worry its the camera on the angle!
Don't worry its the camera on the angle!

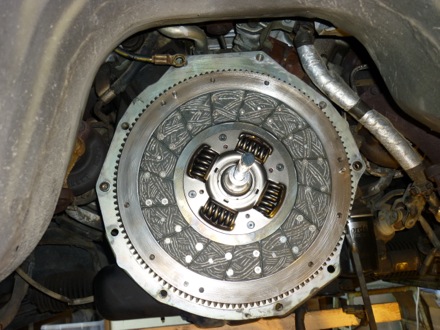

Tim Ramjaun, New clutch with flywheel behind
New clutch with flywheel behind
Tim Ramjaun, Clutch backing plate
Clutch backing plate
Tim Ramjaun, Fully assembled clutch ready to be reunited with transmission
Fully assembled clutch ready to be reunited with transmission
Tim Ramjaun, Exhaust ready for refitting
Exhaust ready for refitting
Tim Ramjaun, The other end
The other end
Tim Ramjaun, Whats underneath your centre console
Whats underneath your centre console

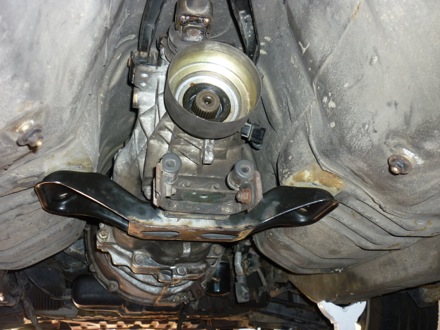

Tim Ramjaun, Transmission back where it should be
Transmission back where it should be
