Friction Stir Weld Microstructure

H. K. D. H. Bhadeshia

We have seen that there are three zones to consider in the microstructure of a friction stir weld: the heat-affected zone, the thermomechanically affected zone, and the stir zone. The following images illustrate the key features of these regions. They have been provided for teaching purposes by Li Liu and Professor Tsubakino of the University of Hyogo, Japan.

The aluminium alloy concerned is 6061 in the T6 condition, with the chemical composition Al-0.71Si-0.18Fe-0.3Cu-0.07Mn-1.14Mg-0.14Cr-0.03Zn-0.02Ti wt%.

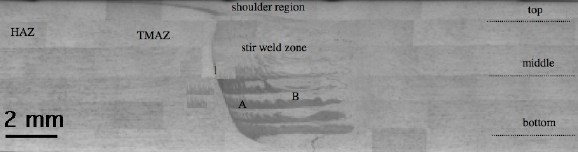

Macroscopic image of the friction stir weld illustrating the different zones.
friction stir weld

The Stir Zone

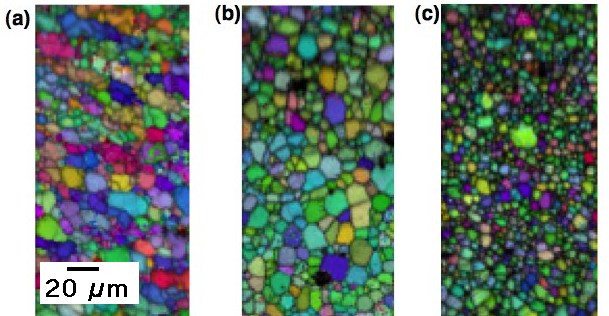

The images below are produced using orientation imaging microscopy; the colours represent different crystallographic orientations. They are from the centre of the weld, with (a) representing the region just below the tool shoulder, (b) the region at the centre of the weld and (c) the bottom of the stir zone.

The grains in region (a) are slightly deformed whereas the other images show equiaxed grains, consistent with a fully recrystallised microstructure. It is evident that the grain structure is not uniform within the stir zone, which undergoes violent deformation whilst hot.

Microstructure of the stir zone as a function of depth.
friction stir weld

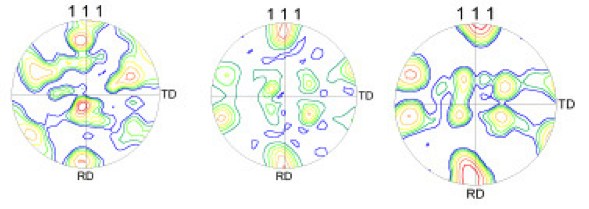

The microstructural variations are due to the heterogeneous nature of the deformation and thermal histories within the stir zone, with dynamic recrystallisation occurring during welding. This also gives rise to crystallographic texture variations, as illustrated in the inverse pole figures shown below (corresponding to the microstructure illustrated above).

Crystallographic texture in the stir zone as a function of depth.
friction stir weld

Heat and Thermomechanically Affected Zones

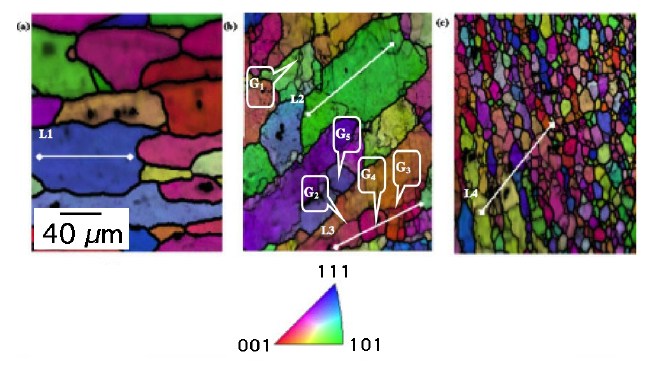

The colours in the images below represent crystallographic orientations; thick black lines represent large crystallographic misorientations between adjacent grains whereas thin black lines represent small misorientations. (a) Heat affected zone; (b) thermomechanically affected zone showing a deformed microstructure; (c) transition from the thermomechanically affected zone to the stir zone.

Microstructure of Heat and thermomechanically affected zones.
friction stir weld


The images have all been provided for teaching purposes by Li Liu and Professor Harushige Tsubakino of the University of Hyogo, Japan.
