Segregation of phosphorus to ferrite grain boundaries during transformation in Fe-P alloy

J. I. Kim, J. H. Pak, K. S. Park, J. H. Jang, D. W. Suh and H. K. D. H. Bhadeshia


A binary alloy of iron containing 0.17 wt% of phosphorus has been heat-treated under a variety of conditions in order to see whether the segregation of phosphorus to grain boundaries can be controlled. The alloy transforms fully into ferrite. It is found that the majority of solute found at the ferrite grain boundaries has its origins in the temperature range where phase transformation occurs, in other words, phosphorus that is accumulated and dragged with the growing α/γ transformation front. As a consequence, it cannot be suppressed using cooling rates as large as 400 K s-1.

International Journal of Materials Research 105 (2014) 1166-1172.

Download paper

Download data archive (0.3 Gb)

Related papers

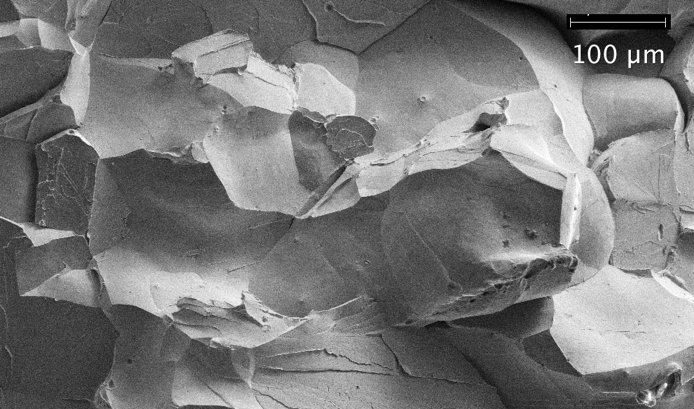

phosphorus embrittlement of steel

Hydrogen TWIP Nuclear growth Maraging steel Bearings Spheroidisation of superbainite
Tempering nanostructures TRIP multipass welds Bainitic powder Shear instabilities Surface hydrogen
Surface displacements Broken bainite Bearing steel Percolation Mn TRIP
Mixed FSW tools Rolling-sliding wear of superbainite Brittle zones Mathematical modelling

PT Group Home Materials Algorithms
