Pearlite in Hypereutectoid Steel

S. Chatterjee and H. K. D. H. Bhadeshia

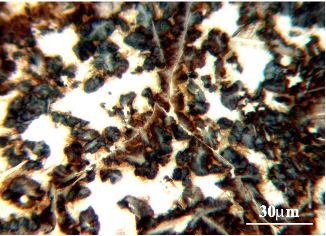

a
Fe-1.75C-2Si-1Mn wt%. Austenitised at 1393 K for 4 h and quenched into water. Shows fine pearlite growing from proeutectoid cementite at the austenite grain boundaries. The white phase is retained austenite.
b
Fe-1.75C-2Si-1Mn wt%. Austenitised at 1393 K for 4 h and quenched into water. Shows fine pearlite growing from proeutectoid cementite at the austenite grain boundaries. The white phase is retained austenite, although the white particles within the pearlite are undissolved cementite.
c
Fe-1.75C-2Si-1Mn wt%. Austenitised at 1393 K for 4 h and quenched into water. Shows fine pearlite growing from proeutectoid cementite at the austenite grain boundaries. The white phase is retained austenite.
d
Fe-1.75C-2Si-1Mn wt%. Austenitised at 1393 K for 4 h and quenched into water. Shows fine pearlite growing from proeutectoid cementite at the austenite grain boundaries. The white phase is retained austenite.

Superalloys Titanium Bainite Martensite Widmanstätten ferrite
Cast iron Welding Allotriomorphic ferrite Movies Slides
Neural Networks Creep Mechanicallly Alloyed Theses Retained Austenite

PT Group Home Materials Algorithms
