Model for multiple stress affected martensitic transformations, microstructural entropy and consequences on scatter in properties

H.K.D.H. Bhadeshia, A. Chintha and S. Kundu

Abstract

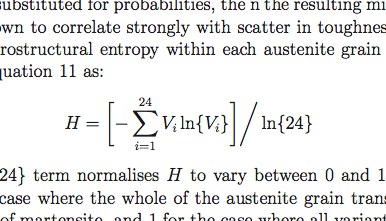

Building on previous work on stress-affected martensitic transformations, a simple theory is presented to enable the calculation of the volume fractions of each martensite variant in an austenite grain, as a function of temperature. Polycrystalline austenite is dealt with by introducing specific textures, so that the orientation of the martensite in any region of the sample is defined. The calculations show that there is strong variant selection even with relatively small applied stresses, and the the evolution of overall volume fraction is dominated by the favoured variants. The notion of microstructural entropy, which indicates the level of heterogeneity in the microstructure is then used to indicate consequences on properties such as the scatter to be expected in toughness. These and further detailed consequences of stress-affected transformation are described.

Materials Science and Technology 30 (2014) 160-165.

Download paper

Download data and associated computer programs

Related papers

• "Problems in the calculation of transformation texture in steels"
  ISIJ International 50 (2010) 1517-1522
  H. K. D. H. Bhadeshia
• "Crystallographic Texture of Stress-Affected Bainite"
  Proceedings of The Royal Society A, 463 (2007) 2309-2328.
  S. Kundu, K. Hase and H. K. D. H. Bhadeshia
• "Crystallographic Texture and Intervening Transformations"
  Scripta Materialia 57 (2007) 869-872.
  S. Kundu and H. K. D. H. Bhadeshia
• "Transformation Texture in Deformed Stainless Steel"
  Scripta Materialia, Vol. 55 (2006) 779--781.
  S. Kundu and H. K. D. H. Bhadeshia
• "Calculation of Crystallographic Texture due to Displacive Transformations"
  International Journal of Materials Research, Vol. 99, 2008, 342-346.
  H. K. D. H. Bhadeshia, H. Abreu and S. Kundu
• "Calculation of Crystallographic Texture due to Displacive Transformations"
  International Journal of Materials Research, Vol. 99, 2008, 342-346.
  H. K. D. H. Bhadeshia, H. Abreu and S. Kundu
• "Prediction and Exploitation of Transformation Texture"
  Solid State Phenomena 172-174 (2011) 13-24.
  H. K. D. H. Bhadeshia

• "Multiple, Simultaneous, Martensitic Transformations: Implications on Transformation Texture Intensities"
  Materials Science Forum 762 (2013) 9-13.
  H. K. D. H. Bhadeshia
